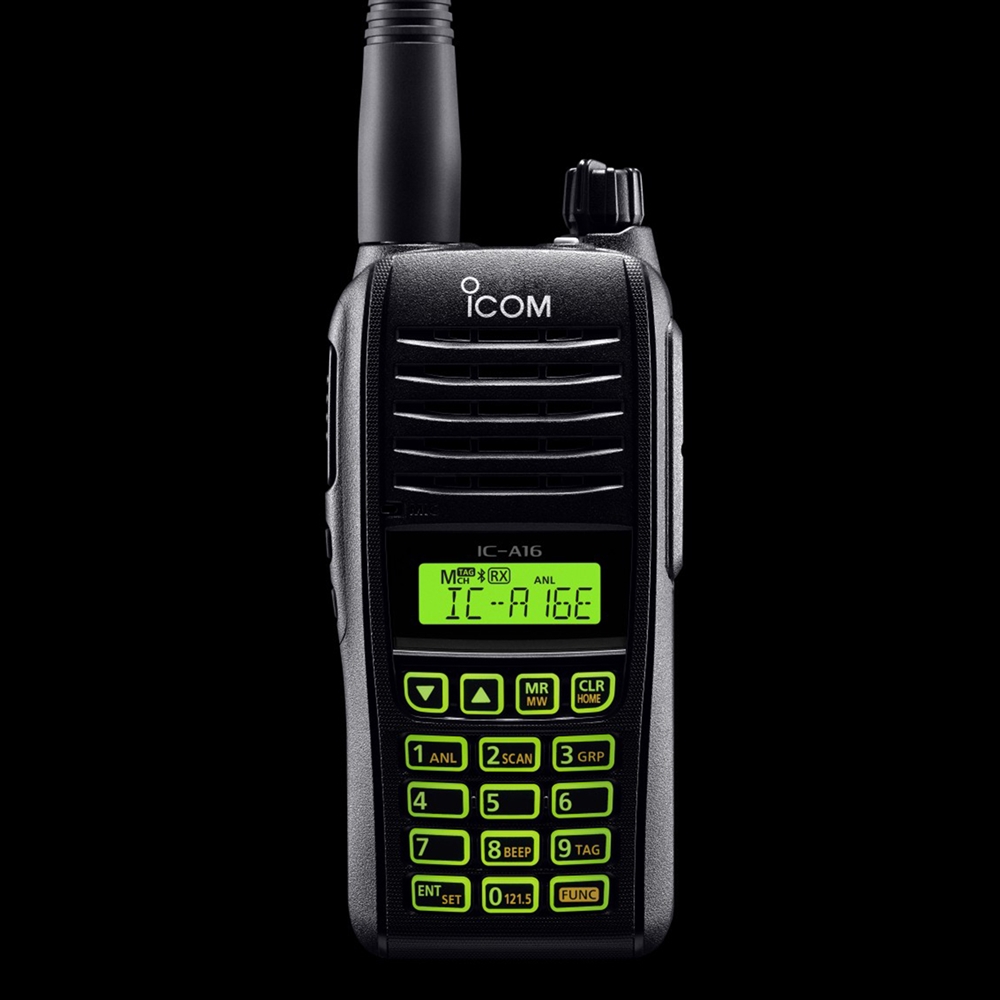

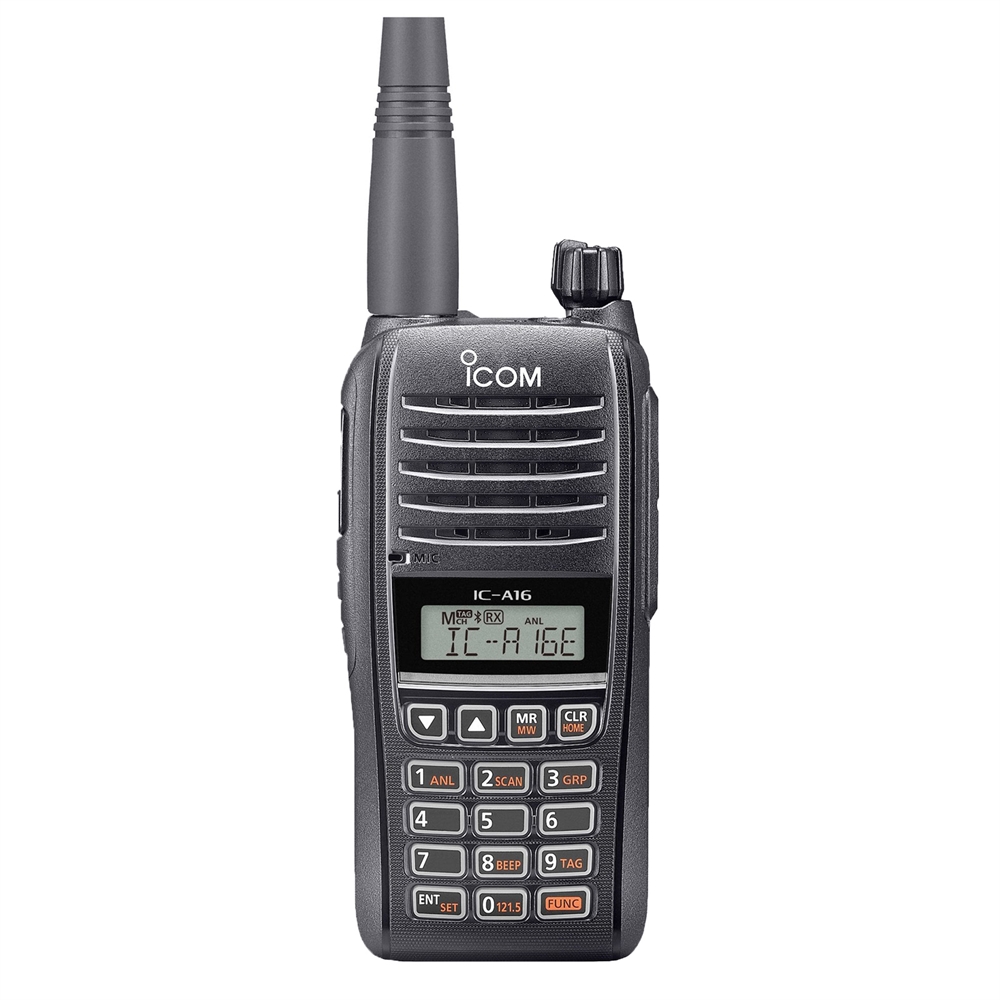

8.33/25 kHz Ground to Air Radio with Class Leading 1500 mW Powerful Audio
8.33 kHz and 25 kHz channel spacing
1500 mW loud audio provides clear communications

6 W (PEP) /1.8 W (carrier) RF output power
Large capacity battery pack provides 17 hours* of long battery life
(* With BP-280. Typical operation with TX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF))
Compact, waterproof durable body (IP67/54 and MIL-STD-810-G)

LCD and key backlight for night time operation

Compatible* with third-party aviation headsets
(* Optional headset adapter OPC-2401 required.)

Other features

• Auto Noise Limiter (ANL) for noise reduction
• Side Tone function
• Internal VOX capability
• 200 memory channels with 8 character names
• BNC type antenna connector

Supplied accessories

• BP-280 battery pack
• BC-213 rapid charger
• BC-123SE AC adapter
• FA-B02AR antenna
• MB-133 belt clip
• Hand strap

General

Frequency range			TX/RX : 118.000–136.992 MHz
Number of memory channels			200 channels
Channel spacing			8.33 kHz/25 kHz
Type of emission			6K80A3E, 5K00A3E
Power supply requirement			7.2 V DC
Current drain (approximate)	TX High		1.8 A
	Rx	Stand-by	65 mA typical
		Max. audio	650 mA
Antenna impedance			50 Ω (BNC type antenna connector)
Operating temperature range			–20°C to +55°C
Dimensions (W×H×D) (Projections not included)			52.2 × 111.8 × 34.1 mm (with BP-280)
Weight (approximate)			257 g (with BP-280)

Transmitter

Output power (at 7.2 V DC)		6.0 W (PEP), 1.8 W (carrier)
Audio harmonic distortion		Less than 10% (at 85% + 3 dB modulation)
Harmonics spurious emissions		Less than –36 dBm (Except for operating frequency ±1 MHz.)
Frequency stability		±1 ppm

Receiver

Intermediate frequencies		46.35 MHz (1st), 450 kHz (2nd)
Sensitivity		Less than 0 dBμ (at 12 dB SINAD with CCITT)
Squelch sensitivity (Threshold)		Less than 0 dBμ
Spurious response		More than 70 dB
Ham and noise		More than 40 dB (at 90% modulation)
Audio output power	INT SP	1500 mW typical
	EXT SP	More than 350 mW (AM 8 Ω 60% modulation at 10% distortion)
External speaker connector		3 conductor 3.5 (d) mm

Measurements made in accordance with EN300 676-2.

Applicable U.S. Military Specifications

Standard	MIL-810 G
	Method	Procedure
Low Pressure	500.5	I, II
High Temperature	501.5	I, II
Low Temperature	502.5	I, II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Rain Blowing/Drip	506.5	I, III
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust and Water	IP67/54

All stated specifications are subject to change without notice or obligation.
